ULTRAFILTRATION PLANT

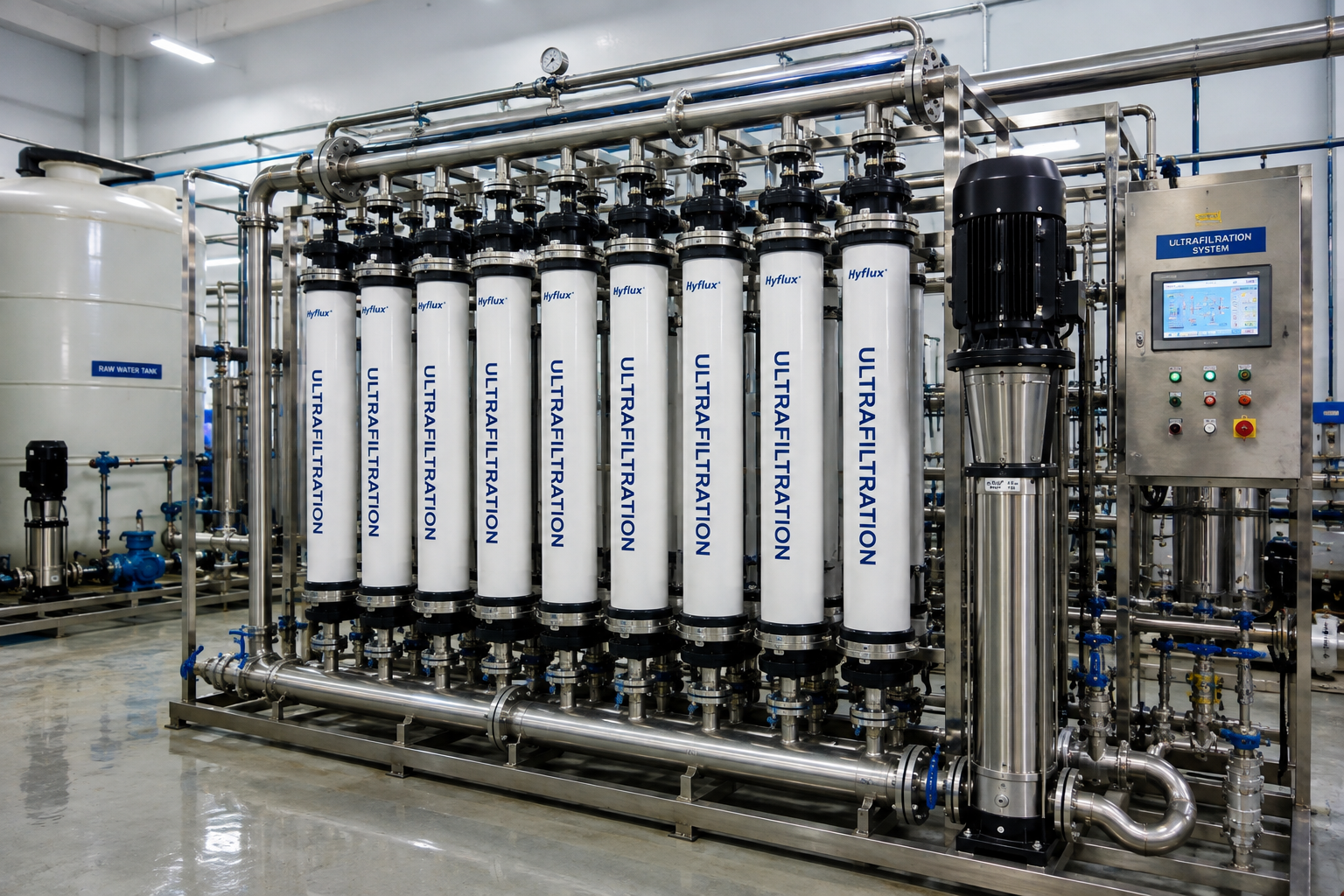

ULTRAFILTRATION (UF) PLANT
An Ultrafiltration (UF) Plant is an advanced membrane-based filtration system designed to remove suspended solids, turbidity, fine particles, colloidal matter and microorganisms from water and treated wastewater.
UF systems are widely used as a tertiary treatment after STP & ETP, as well as in Water Treatment Plants and as pre-treatment for RO systems. It produces clear and consistently filtered water suitable for reuse or further treatment.
PROCESS FLOW
Ultrafiltration Process Flow
Treated Water / Raw Water
UF Feed Tank
UF Feed Pump
Pre-Filter / Strainer
UF Membrane
UF Product Water Tank
Reuse / Further Treatment
Backwash Tank / Product Water
Backwash Pump
UF Membrane
Backwash / Drain
TREATMENT PROCESS
UF Treatment Process
01
UF Feed Tank
Collects treated water from STP, ETP, WTP or other water treatment processes before UF filtration.
02
UF Feed Pump
Supplies water to the UF system at the required flow and operating pressure.
03
Pre-Filter / Strainer
Removes larger suspended particles and protects the UF membranes from blockage.
04
UF Membrane
Provides fine membrane filtration to remove suspended solids, turbidity, colloidal particles and microorganisms, producing clear filtered water.
05
Backwash System
Periodically cleans the UF membrane by reversing the flow of filtered water to remove accumulated impurities and maintain system performance.
06
Chemical Cleaning / CEB System
Used when required for periodic membrane cleaning and maintaining filtration efficiency.
KEY BENEFITS
UF System Benefits
01
Excellent turbidity & suspended solids removal
02
Consistent filtered water quality
03
Effective tertiary treatment for STP & ETP
04
Suitable as pre-treatment before RO
05
Compact system with small footprint
06
Automatic operation & backwashing
07
Improves downstream treatment efficiency
08
Suitable for water recycling & reuse
APPLICATIONS
UF System Applications
STP Tertiary Treatment
ETP Tertiary Treatment
Water Treatment Plants
RO Pre-Treatment
Industrial Process Water
Treated Sewage Reuse
Cooling Tower Make-up
Gardening & Flushing Water
Commercial & Industrial Water Reuse
UF systems can be customized according to feed water quality,
required capacity and final treated water application.
